Introduction
“300 × 400 mm” looks like a clear bag specification. But does the height include the material above the zipper? Does the width include the side seals? And can the product pass through the opening without stretching it?
For importers, wholesalers, distributors and clothing brands, these questions matter before ordering custom size zipper bags. Two suppliers can quote the same nominal dimensions while interpreting the measurement points differently.
The solution is to define the dimensions on a drawing, then confirm product fit with a filled sample.
Separate Outside Dimensions From Usable Space
For a flat slider zipper bag, outside dimensions describe the finished outline. Usable dimensions describe the internal area available for contents, excluding sealed or closure areas.
Neither measurement alone guarantees a successful fit.
|
Specification |
What to Define |
Why It Matters |
| Finished outside width | Left outer edge to right outer edge | Establishes the overall bag outline |
| Finished outside height | Top outer edge to bottom outer edge | Clarifies whether the top margin is included |
| Internal clear width | Between the inner boundaries of the side seals | Shows the flat space available inside |
| Usable height below zipper | Agreed lower closure boundary to inner bottom-seal boundary | Prevents closure space being counted as product space |
| Effective opening | Accessible opening with the slider fully open | Confirms whether the product can enter easily |
| Dimensional tolerance | Allowed variation for each agreed measurement | Establishes an inspection basis for production |
Ask the supplier to mark the exact endpoints. Terms such as “bag length” or “packing height” should not remain undefined in the purchase specification.

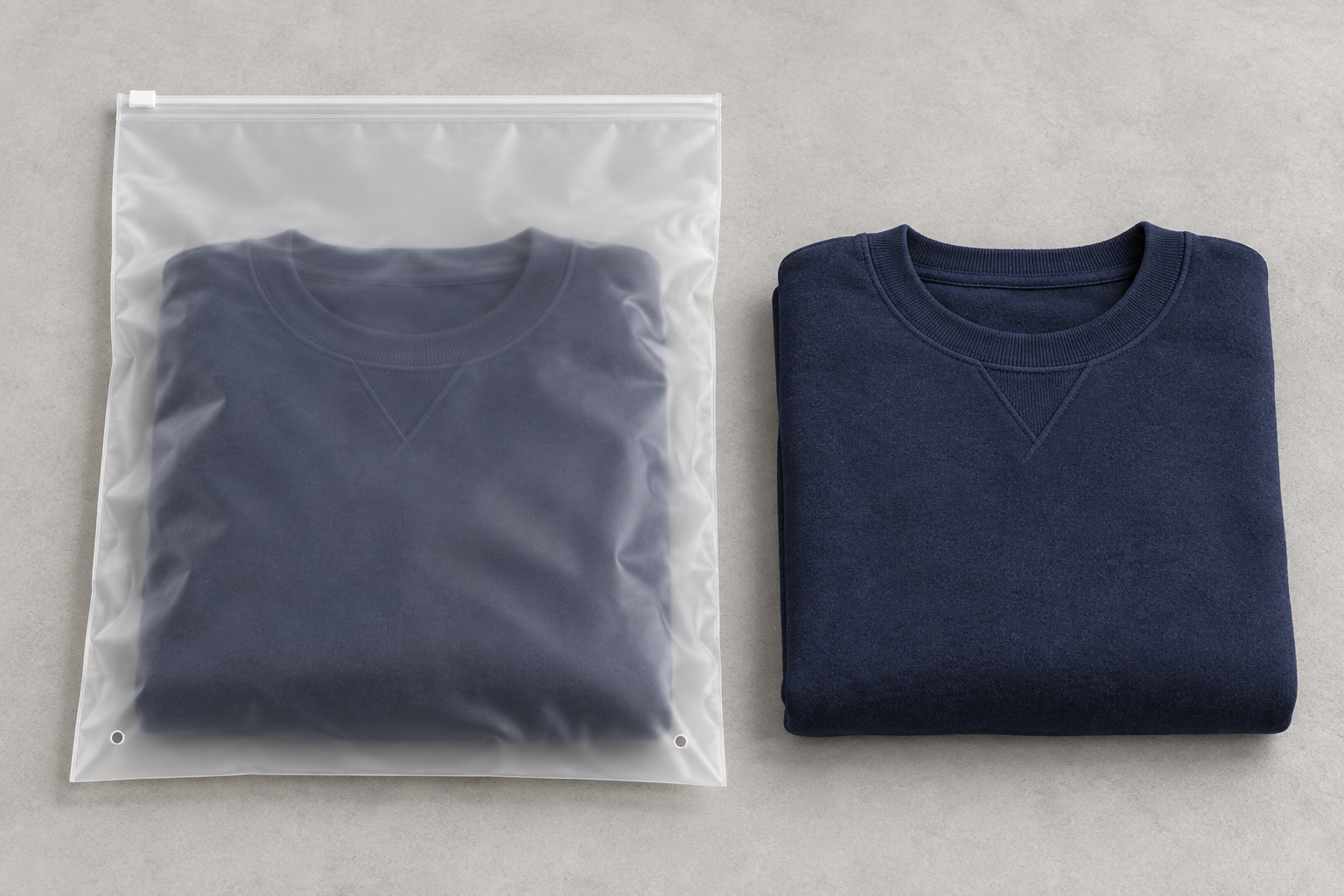

A Flat Measurement Does Not Predict Filled Fit
A folded garment has thickness as well as width and length. When a flat bag wraps around that thickness, part of its film spans the sides of the product rather than remaining available as a flat face.
This is why a pack can appear smaller than the empty bag and still fit poorly.
For example, a folded sweatshirt and a lightweight shirt may share a similar footprint. The sweatshirt can require more packing allowance because of its thicker folds, cuffs and waistband.
Do not apply one universal allowance to every product. Send the supplier the actual folded dimensions, maximum thickness and intended packing arrangement.
Check the Opening Separately
A product may fit inside the bag but be difficult to insert through its opening. Zipper ends, side construction and slider position can affect access.
During sample review, fully open the slider and load the product using the planned production method. Operators should not need to stretch the opening or force rigid tags through it.

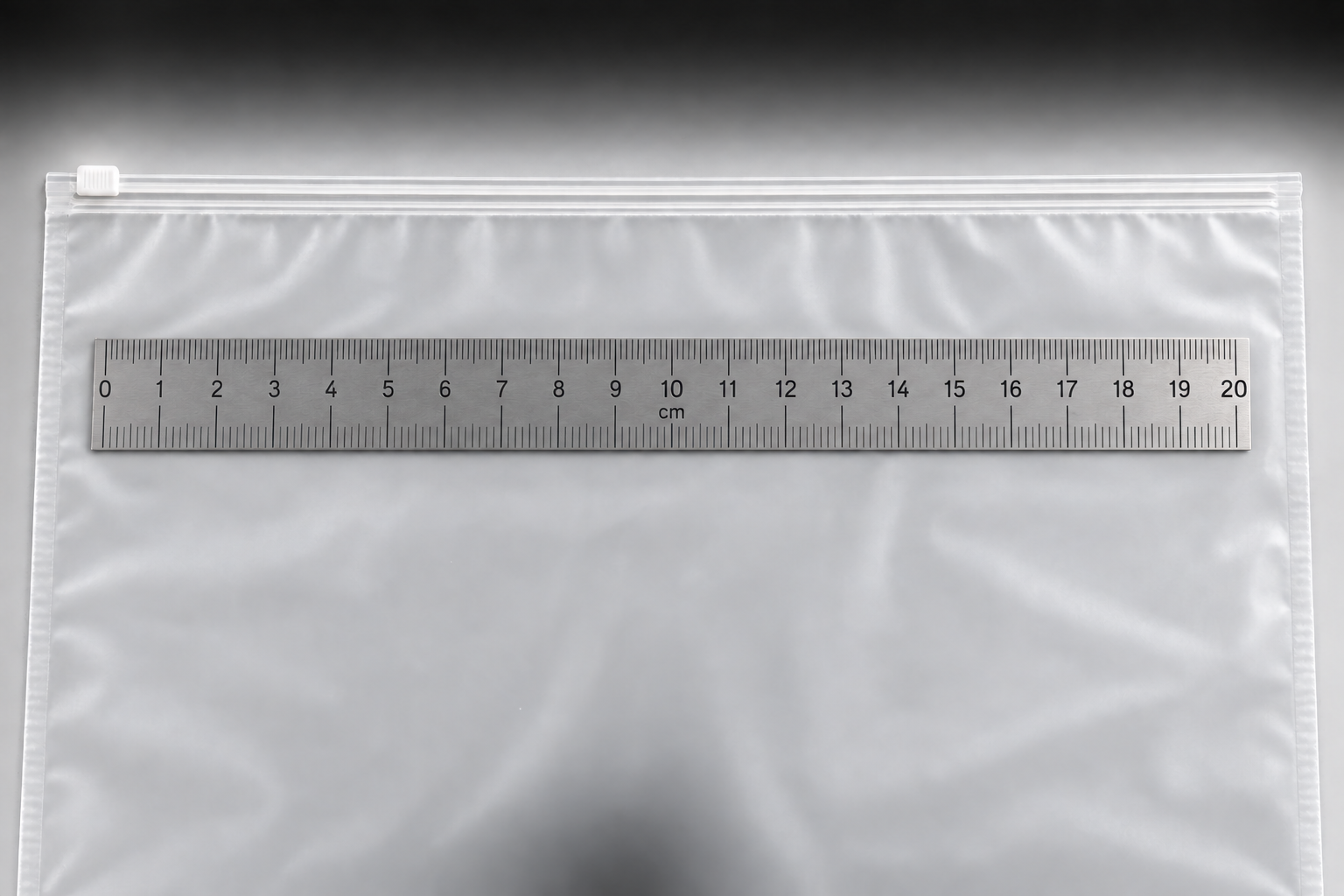

Confirm the Size Without Stretching the Film
Agree on a repeatable measurement method before production: an empty bag laid flat on a level surface, wrinkles gently smoothed, and no deliberate pulling on the film.
Record the units, measurement endpoints and whether the zipper is open or closed. Use the same method for sample approval and incoming inspection.
Also agree on tolerances rather than assuming every bag will match the nominal size exactly. If fit depends on a minimum usable width, state that requirement explicitly and confirm it with the supplier.
An outside dimension can be within tolerance while the usable space is unsuitable. Where fit is critical, inspect both.
Use a Filled Sample as the Final Fit Check
Review the largest or thickest intended pack, not only the easiest sample to load. Confirm that:
- The product enters without excessive pulling.
- The slider closes without catching fabric or tags.
- Side seals and bottom corners are not visibly stretched.
- The filled bag maintains the required presentation.
- The approved packs fit the planned carton arrangement.
Keep the signed drawing and physical sample together. The drawing defines measurable requirements; the filled sample confirms the packing result.
For repeat orders, review the fit again if the garment fold, product thickness, zipper construction or seal layout changes. Reusing the same nominal bag size does not automatically preserve the same usable space.
FAQ
Q1:Should custom zipper bags be ordered by outside or usable dimensions?
Specify both when fit is important. Use outside dimensions to define the finished bag and usable dimensions to define the space required for the contents. Mark each measurement on the approval drawing.
Q2:Can a supplier choose the bag size from product dimensions alone?
Product dimensions provide a starting point. Reliable approval also requires the product’s thickness, folding method, closure clearance and a packing trial with representative samples.
Confirm Your Custom Zipper Bag Dimensions
Preparing a bulk order? Send your folded product width, length, maximum thickness, order quantity and printing requirements. Request a dimensioned drawing and filled-sample review before approving custom zipper bags for production.
